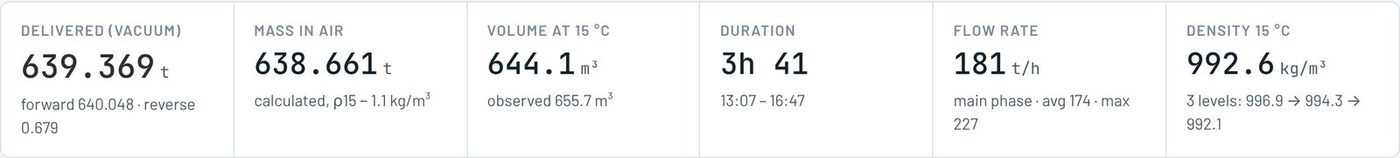

Net as on the ticket
Delivered mass from the totaliser reset, forward and reverse, mass in air and volume at 15 °C – the same figures as on the meter ticket.
Bunker delivery analysis
What really went through the meter?
Coriolens reads the raw export of the Coriolis mass flow meter and shows within minutes whether a delivery adds up: the quantity as on the ticket, air or gas in the meter, the comparison with the meter ticket, an ISO 22192 verdict and – for your own fleet – the tank contents on board.
A clear lens on every flow.
3editions: Analyse, Verify and Fleet
9criteria in the ISO 22192 verdict
4languages: Dutch, English, French, German
0bytes of meter data sent to a server: it all runs in your browser
What Coriolens does
From raw meter data to a verdict you can present
The mass flow meter logs flow, totaliser, density, temperature, pressure and drive gain every minute. Coriolens turns those numbers into an analysis anyone on board or in the office can read.
Air and gas in the meter

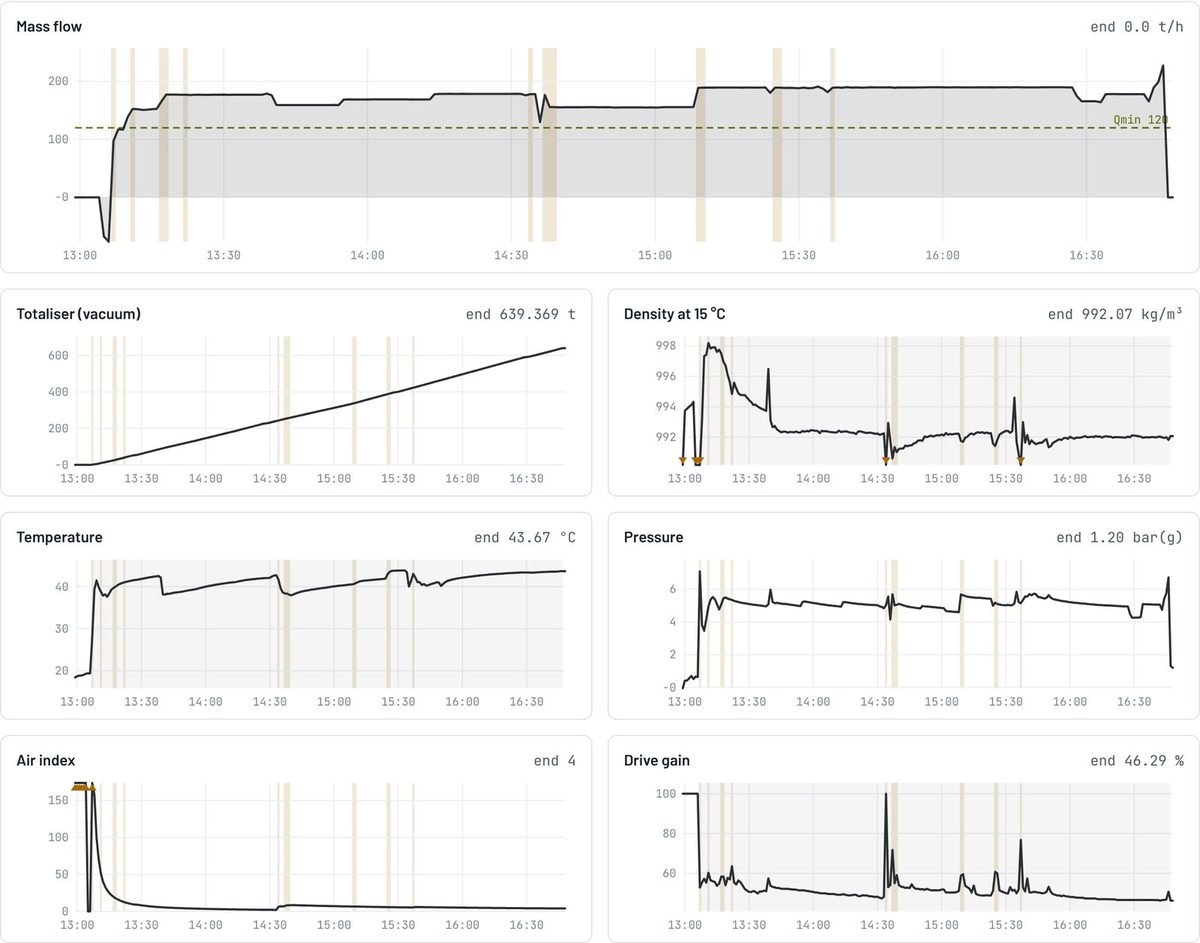

Drive gain, density and air index minute by minute. Coriolens shows when air or gas passed through the meter and how much mass was counted.
Meter ticket compared
The flow computer ticket is read and set against the raw data: net, start and end, clock offset, totalisers and density against ISO 8217.

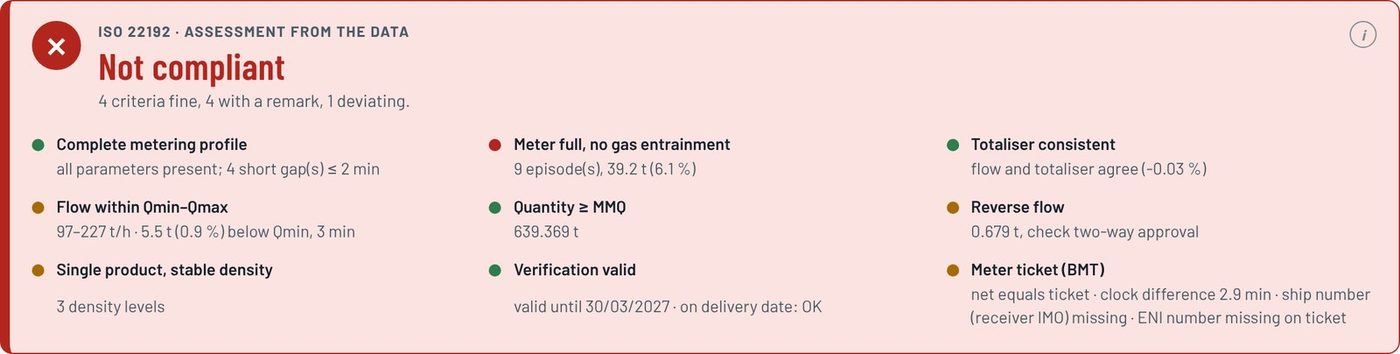

ISO 22192 verdict
Nine criteria at the top of the report, in green, orange or red: compliant, compliant with remarks or non-compliant.

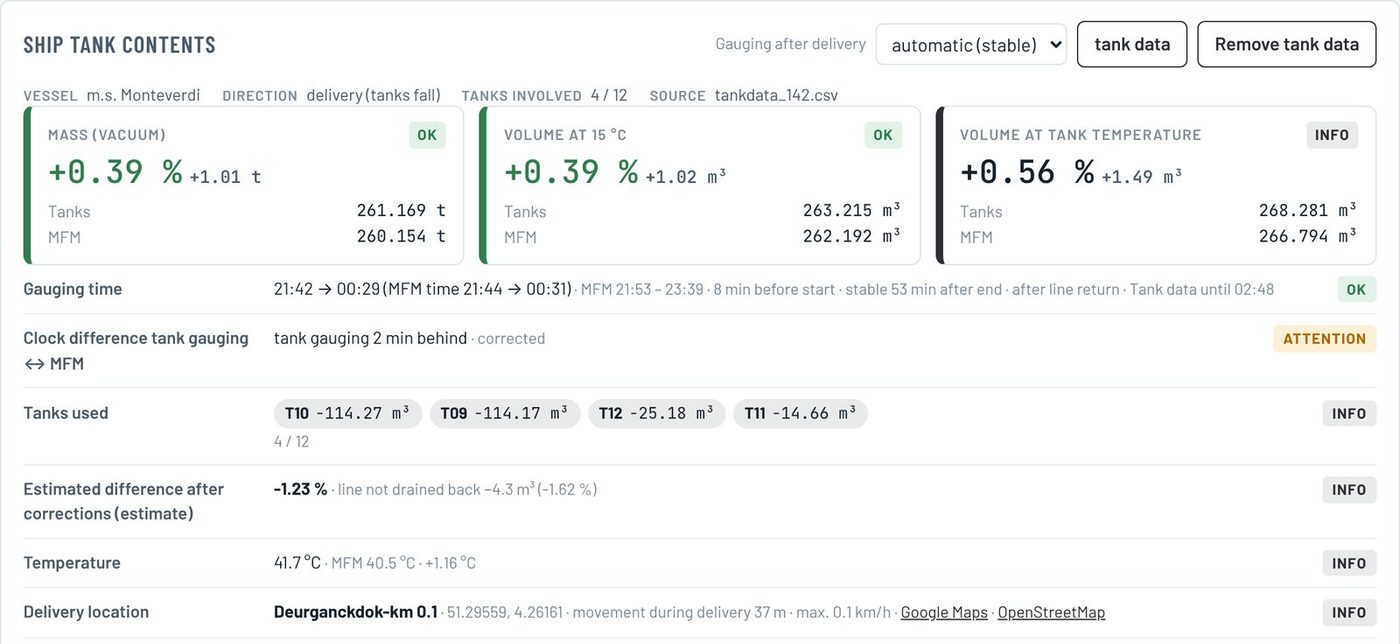

Tank contents on board
In Fleet: the drop in the tanks next to the MFM quantity, with clock offset, line drain-back and gauge corrections taken into account.

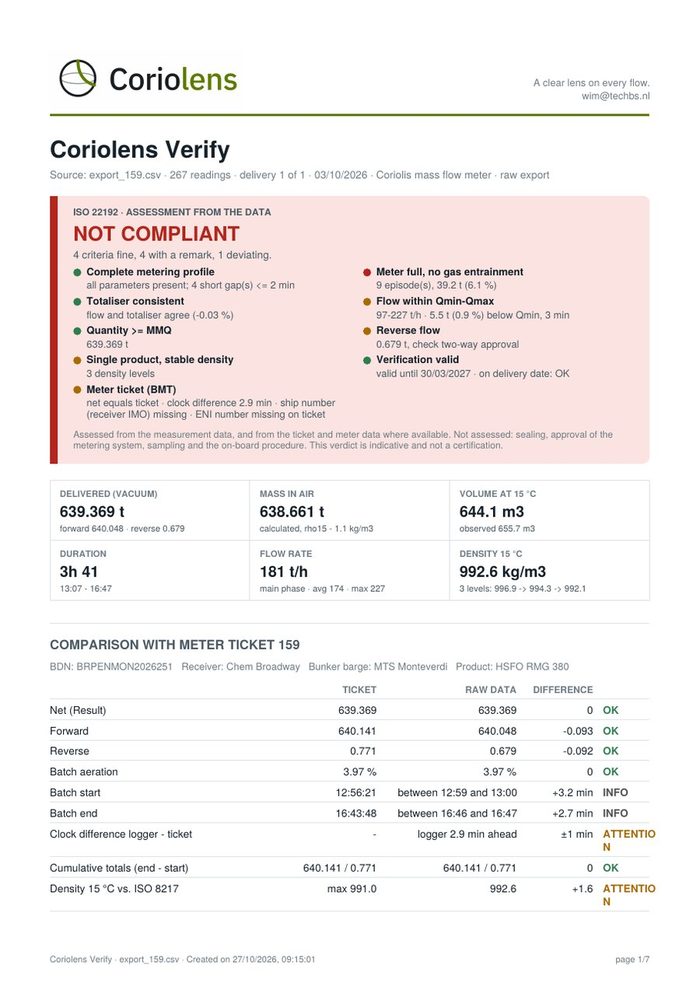

Report in four languages
A PDF of about 0.2 MB to e-mail, an interactive report to share and a text report for the log book.
Three editions
Choose the edition that fits your work
One calculation core, three levels. Access is granted per edition through the customer portal.
Understand what happened

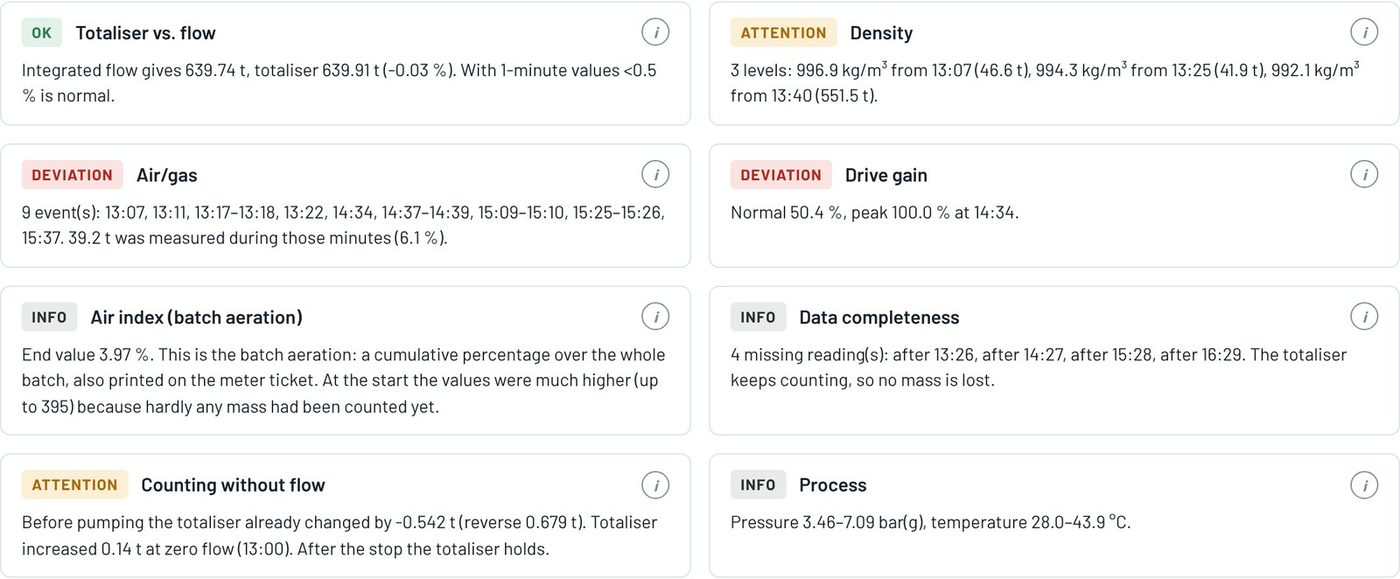

Coriolens Analyse
The full analysis of a delivery from the MFM log.
- Key figures, pumping phases and charts
- Air/gas, density and totaliser checks
- Comparison with the meter ticket
- PDF, interactive report and text report
Show that it is right
Coriolens Verify
Everything in Analyse, assessed against ISO 22192 and the meter data.
- ISO 22192 verdict with 9 criteria
- Meter documents read: Qmin/Qmax, MMQ, verification
- Documents stay in memory only
- For suppliers, receivers and surveyors
Your own bunker fleet
Coriolens Fleet
Everything in Verify, with the fleet register and the tank data of your vessels.
- Meters and licences per vessel built in
- Tank contents on board against the MFM
- Gauge corrections and drain-back detected
- Save per vessel and per batch
| Analyse | Verify | Fleet | |
|---|---|---|---|
| Key figures, findings, checks, charts | ✓ | ✓ | ✓ |
| Comparison with the meter ticket | ✓ | ✓ | ✓ |
| PDF, interactive report, text report | ✓ | ✓ | ✓ |
| ISO 22192 verdict | – | ✓ | ✓ |
| Check against the meter (Qmin/Qmax, MMQ, density) | – | ✓ from documents | ✓ fleet register |
| Tank data and gauge corrections | – | – | ✓ |
How it works
Three steps, a few minutes
Export the log
Download the minute log of the mass flow meter as csv, txt or xlsx – straight from the logger.
Drop it into Coriolens
Add the meter ticket as a PDF, and in Verify the meter documents. Coriolens finds the delivery in the file by itself.
Read the verdict, share the report
The verdict on top, then the analysis, the ticket comparison and the charts. One click for a PDF or interactive report.
Security and privacy
Your meter data stay where they belong
Coriolens is built for data you do not share lightly.
Runs in your browser
Exports, tickets and documents are read on your own computer. They are never sent to a server.
Fully offline too
Every edition exists as a stand-alone file that works without internet, with SHA-256 checksums to verify it was not altered.
Meter documents not kept
Only the meter values found stay in memory while you work. Clearing or closing erases everything.
Access per account
In the customer portal each account only gets the editions released for it. The portal only counts usage: type, file name and time.
Customer portal
Everything behind one login
With your account you open the applications directly in the browser, always in the latest version.
- Coriolens Analyse, Verify and Fleet – as released for your account
- Short films per edition, in Dutch and English
- Presentations to show internally or to customers
